Light Cup





Description



A mercury switch paired with an LED.

Also called: magic cup. KY027.

Found in kits: 37 sensors, 45 sensors.


Specification/Notes:



• Voltage: 3.3V to 5.0V
• LED: Power
• Size: 20mm X 60mm

There are a number of different sources for these modules. Not every module that looks similar to the ones here behaves exactly the same. Check the specific module that you have for differences in function, voltage levels, pinout, and inactive/active states. Some modules have been found to have incorrectly labeled pins and even poorly soldered components.

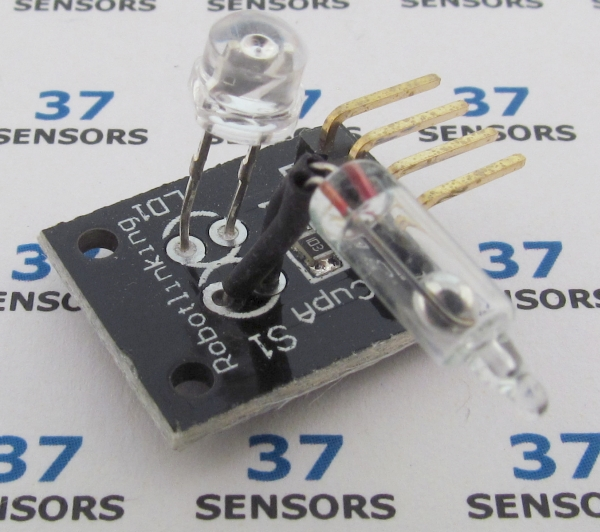

This board has a mercury switch and an LED. The LED needs a series current limiting resistor. An on-board 10kohm resistor connects to one lead of the mercury switch.

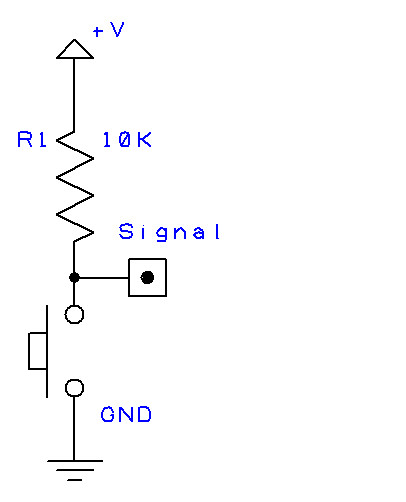

Image: Mercury switch schematic. (Mercury switch represented by push button.)


Module Pin-out:

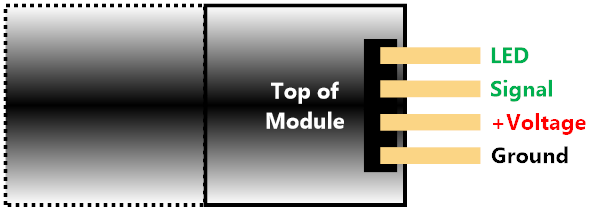

Image: Typical/common pinout. Always check the pinout for the module that you have.
